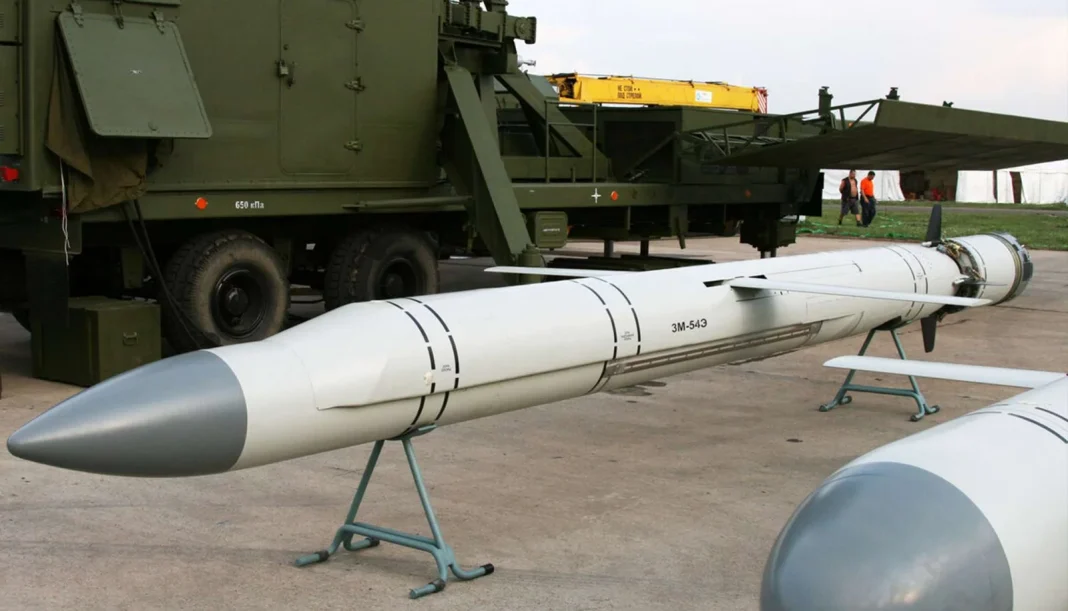

The 3M54-1 Kalibr, also known by its NATO reporting name SS-N-27 “Sizzler”, is a high-precision, long-range anti-ship cruise missile developed by NPO Novator (OKB-8). Featuring a two-stage propulsion system with a supersonic terminal phase, the 3M54-1 is designed to penetrate modern naval air defenses and strike high-value maritime targets with devastating effect.
Description and Development
The 3M54-1 Kalibr was tested starting in 2004 and quickly became integrated into the Russian Navy’s surface ships and submarines. Platforms include:
- Buyan-M-class corvettes
- Admiral Grigorovich-class frigates
- Yasen-class, Schuka-B (Akula-class), and Lada-class submarines
Export variants of the missile, such as 3M54E, have been adopted by countries including India, China, Algeria, and Vietnam. India deployed the missile on Sindhughosh-class submarines and Talwar-class frigates, successfully testing it in 2008.
The missile has undergone continuous upgrades to maintain effectiveness against evolving threats, with enhancements to guidance, propulsion, and warhead lethality.
Variants
| Variant | Role | Key Features | Range | Payload |
|---|---|---|---|---|
| 3M-54E | Anti-ship (export) | Compact design, subsonic cruise | 220–300 km | 200 kg |
| 3M-54E1 | Anti-ship (export) | Sea-skimming flight, Mach 0.8 terminal speed | 300 km | 200 kg |
| 3M-14E | Land-attack (export) | Inertial guidance, heavier payload | 300 km | 450 kg |
| 3M-54TE | Anti-ship (surface) | Thrust vectoring booster, 8.9 m length | 660 km (domestic) | 450 kg |
| 3M-54TE1 | Anti-ship (surface) | Sea-skimming, thrust vectoring, Mach 0.8 terminal | 660 km est. | 450 kg |
| 3M-14TE | Land-attack | Inertial guidance, thrust vectoring booster | 300 km | 450 kg |
Warhead
The 3M54-1 carries a high-explosive warhead (400–500 kg) optimized to penetrate ship hulls and detonate inside critical systems such as:
- Propulsion
- Weapons systems
- Command and control centers
Its delayed detonation ensures deep penetration, capable of crippling even heavily armored vessels, including destroyers and aircraft carriers.
Design and Propulsion
- Length: 6.2–8.9 m (variant-dependent)
- Diameter: 0.533 m
- Launch weight: 1,300–2,300 kg
- Construction: Lightweight aluminum alloys and composites for durability and aerodynamic efficiency
Propulsion system:
- Launch: Solid rocket booster for stable ascent
- Cruise: Turbojet engine for sustained subsonic speeds (0.8–0.9 Mach)
- Terminal: Secondary booster for supersonic sprint (up to 2.9 Mach), enhancing strike impact and minimizing enemy reaction time
Guidance Systems
The missile integrates multi-mode guidance:
- Mid-course: Inertial Navigation System (INS)
- Long-range: GLONASS satellite navigation
- Terminal: Active radar seeker for precise target acquisition
- Flight profile: Low-altitude sea-skimming reduces radar signature
This ensures effective engagement even in electromagnetically contested environments.
Combat Use
The 3M54-1 Kalibr is deployed from:
- Surface ships (vertical launch systems)
- Submarines (533 mm torpedo tubes)
Its primary mission is neutralizing surface warships, employing stealthy approach and high-speed terminal attack to overcome layered air defenses. The missile can also strike land targets with the 3M-14 variants, making it versatile across maritime and littoral operations.
Specifications
| Parameter | 3M54-1 Kalibr |
|---|---|
| Type | Ship/submarine-launched cruise missile |
| Users | Russia, India, China, Algeria, Vietnam |
| Warhead | 400–500 kg HE or thermonuclear (variant-dependent) |
| Engine | Solid-fuel rocket + turbojet (subsonic cruise), terminal booster for supersonic sprint |
| Weight | 1,300–2,300 kg |
| Range | 220–660 km (variant-dependent) |
| Speed | Subsonic cruise (0.8–0.9 Mach), supersonic terminal up to 2.9 Mach |
| Guidance | INS, GLONASS, active radar seeker |
| Dimensions | Length 6.2–8.9 m, Diameter 0.533 m |
The 3M54-1 Kalibr remains a cornerstone of Russia’s anti-ship capability, combining stealth, precision, and supersonic terminal speed to challenge modern naval defenses and project power across maritime theaters.
