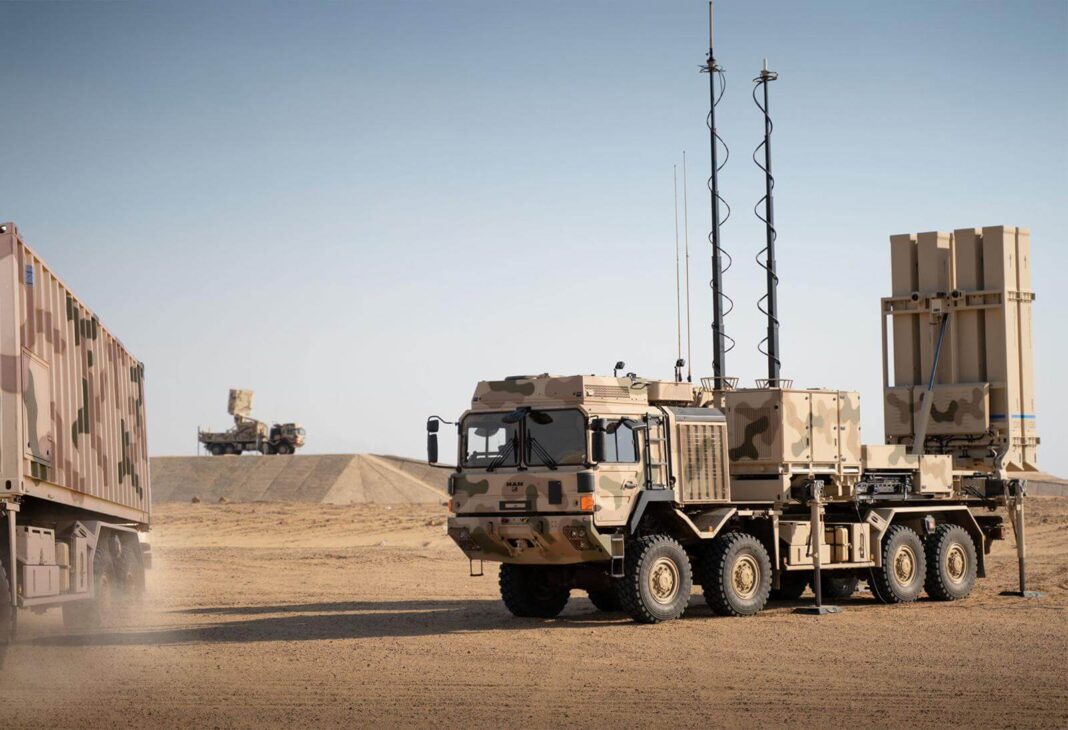

The IRIS-T SLS is a German-developed, short-range, surface-launched air defense missile system designed by Diehl Defence, a prominent defense manufacturer in Germany. Tailored to provide swift, mobile protection against a wide array of aerial threats—including fixed-wing aircraft, helicopters, drones, and cruise missiles—the IRIS-T SLS is the short-range variant within the IRIS-T Surface-Launched missile family. It repurposes the proven IRIS-T air-to-air missile for ground-based air defense roles, offering an effective and cost-efficient solution.
System Overview
Classified as a short-range air defense (SHORAD) platform, the IRIS-T SLS leverages an infrared-guided missile originally intended for air combat but adapted for surface launch. By utilizing existing IRIS-T missiles in service, this system expands their operational utility into ground-based defense networks. Upon loading into the launcher, the missiles are automatically updated with specialized software to optimize their surface-to-air engagement performance.
Developed to meet the need for a rapidly deployable and highly mobile air defense capability, the IRIS-T SLS is mounted on a rotating launcher capable of 360-degree coverage, ensuring protection from threats approaching any direction. Since entering service in the 2010s, it has been adopted by several Northern European nations, available in both mobile and fixed-site configurations.
Operational Role
The primary mission of the IRIS-T SLS is to provide immediate air defense coverage for static installations and maneuvering forces alike. It secures key assets such as military convoys, command centers, and logistics hubs against aerial attacks, effectively bridging the short-range defense layer within multi-tiered air defense systems. Its precision targeting and quick reaction time make it invaluable for defending high-value locations against precision-guided munitions and fast-moving aerial threats during both peacetime and conflict.
Launcher Unit
The launcher features a lightweight, modular design housed within a standard 10-foot ISO container frame, facilitating easy transport and integration across various military vehicles. It can carry between four and six IRIS-T missiles in ready-to-fire canisters. Mounted on a rotating platform, the launcher provides full 360-degree engagement capability and is remotely operated via a central command system that coordinates firing within a networked air defense environment.
Missile Characteristics
The missile itself is a highly maneuverable, infrared-guided interceptor equipped with an advanced imaging infrared seeker, capable of precise target acquisition even under electronic jamming or countermeasure conditions such as flares. Measuring approximately 2.9 meters in length with a 127 mm diameter and weighing around 87 kg, the missile carries a high-explosive fragmentation warhead optimized for aerial target destruction.
With an effective range up to 12 kilometers and an altitude reach of 8 kilometers, the missile can intercept low- and medium-altitude threats. Its thrust-vector control system enables agile maneuvers to track fast and evasive targets such as fighter jets and drones. Employing a fire-and-forget mechanism, the missile requires no further guidance after launch, allowing simultaneous engagement of multiple threats. Its all-weather capability ensures reliable performance across diverse climates.
Mobility
To maximize operational flexibility, the IRIS-T SLS launcher is mounted on a variety of highly mobile platforms. Commonly deployed on wheeled vehicles like the MAN HX series or Unimog trucks, these platforms offer excellent off-road and highway performance. Recently, the Ukrainian armed forces have been observed using the IRIS-T SLS on Italian-built Iveco Eurocargo 4×4 chassis, configured variably as 4×4, 6×6, or 8×8 based on mission needs. These vehicles support an operational range exceeding 600 km and can reach speeds of up to 90 km/h, allowing rapid repositioning to maintain air defense coverage.
Beyond wheeled vehicles, the IRIS-T SLS launcher can be installed on tracked, all-terrain amphibious platforms such as the BvS10. This articulated vehicle excels in challenging environments including snow, marshlands, and mountainous terrain, expanding deployment options to Arctic operations and amphibious missions where wheeled vehicles might struggle.
Command and Control
Integrated into modern networked air defense architectures, the IRIS-T SLS employs advanced command and control systems for fire coordination and threat management. The system operates from a mobile command post, typically an armored vehicle, where operators receive target data in real time and manage engagements. It supports interoperability with 3D radar systems like the TRML-4D and Giraffe 4A, which provide high-resolution tracking and engagement assistance.
The automated fire control system allows rapid target acquisition and engagement with minimal operator intervention. Compatible with NATO-standard data links such as Link 16 and SAMOC, the IRIS-T SLS can seamlessly integrate into allied air defense networks. A typical battery includes multiple launchers, a radar unit, and a command center, forming a comprehensive short-range air defense solution.
Combat Applications
Designed for versatility, the IRIS-T SLS adapts to various combat scenarios, excelling in rapid response and flexibility. It fills the short-range air defense layer within multi-tiered defense networks, complementing medium-range systems like the IRIS-T SLM and long-range platforms such as the Patriot or NASAMS. The system is especially effective in point-defense roles, protecting critical infrastructure like military bases, airfields, and supply hubs.
In mobile operations, it safeguards mechanized units and convoys, enabling protection against aerial threats during maneuvers. The system’s high firing rate and fire-and-forget capability allow simultaneous engagement of multiple incoming targets, including swarm attacks. Its all-weather operability and resistance to electronic countermeasures make it a reliable asset for contemporary and future battlefield environments.
Technical Summary
- Type: Short-range surface-to-air missile system (SHORAD)
- Manufacturer: Diehl Defence, Germany
- Users: Germany, Sweden, Norway, Estonia
- Armament: 4 to 6 IRIS-T infrared-guided missiles (surface-launched variant)
- Missile Warhead: High-explosive fragmentation
- Guidance: Imaging infrared (IIR) seeker, thrust-vector control, fire-and-forget
- Range: Up to 12 km
- Altitude: Up to 8 km
