The IRIS-T SLS is a highly mobile, short-range surface-to-air missile system developed by Germany’s Diehl Defence, a prominent defense manufacturer. It is engineered to rapidly protect ground forces and critical infrastructure against a wide array of aerial threats, including fixed-wing aircraft, helicopters, drones, and cruise missiles. As the short-range element of the IRIS-T Surface-Launched family, the SLS variant adapts the proven air-to-air IRIS-T missile for effective ground-based air defense, providing a cost-efficient and flexible solution.
System Overview
Classified as a SHORAD (Short-Range Air Defense) system, the IRIS-T SLS employs an infrared-guided missile originally designed for aerial dogfights, now reprogrammed for surface launches. This approach leverages existing IRIS-T missiles already in service with air forces, extending their utility into ground-based roles. When mounted on the launcher, these missiles are automatically updated with software enhancements tailored for optimal surface-to-air engagement.
Conceived to meet the growing need for a mobile, quick-reaction air defense system, the IRIS-T SLS integrates the missile into a lightweight launcher capable of 360-degree target engagement. Introduced in the 2010s, it has been adopted by multiple Northern European countries in both mobile and static defense configurations.
Primary Role
The IRIS-T SLS serves to deliver immediate and reliable air defense for both fixed assets and maneuvering units. Its main missions include protecting military convoys, command posts, and logistical hubs from air attacks, effectively bridging short-range air defense gaps within multi-tiered defense networks. The system also safeguards vital infrastructure against precision-guided munitions and a variety of aerial threats during peacetime and combat.
Launcher and Mobility
The launcher is a modular, lightweight unit housed in a 10-foot ISO container frame, allowing easy integration with different military vehicles. It can carry between four and six ready-to-fire IRIS-T missiles in sealed canisters and is mounted on a rotating platform for full 360-degree coverage. The system is remotely operated and linked to a central command, facilitating coordinated fire control within a networked defense environment.
The IRIS-T SLS launcher is typically mounted on high-mobility platforms such as MAN HX or Unimog trucks, delivering excellent off-road performance and high speed on roads. Recently, the Ukrainian army’s version was spotted on an Italian Iveco Eurocargo 4×4 chassis. Depending on mission needs, vehicles may have 4×4, 6×6, or 8×8 configurations, with operational ranges exceeding 600 km and speeds up to 90 km/h. This mobility ensures the system can reposition swiftly to respond to changing threats.

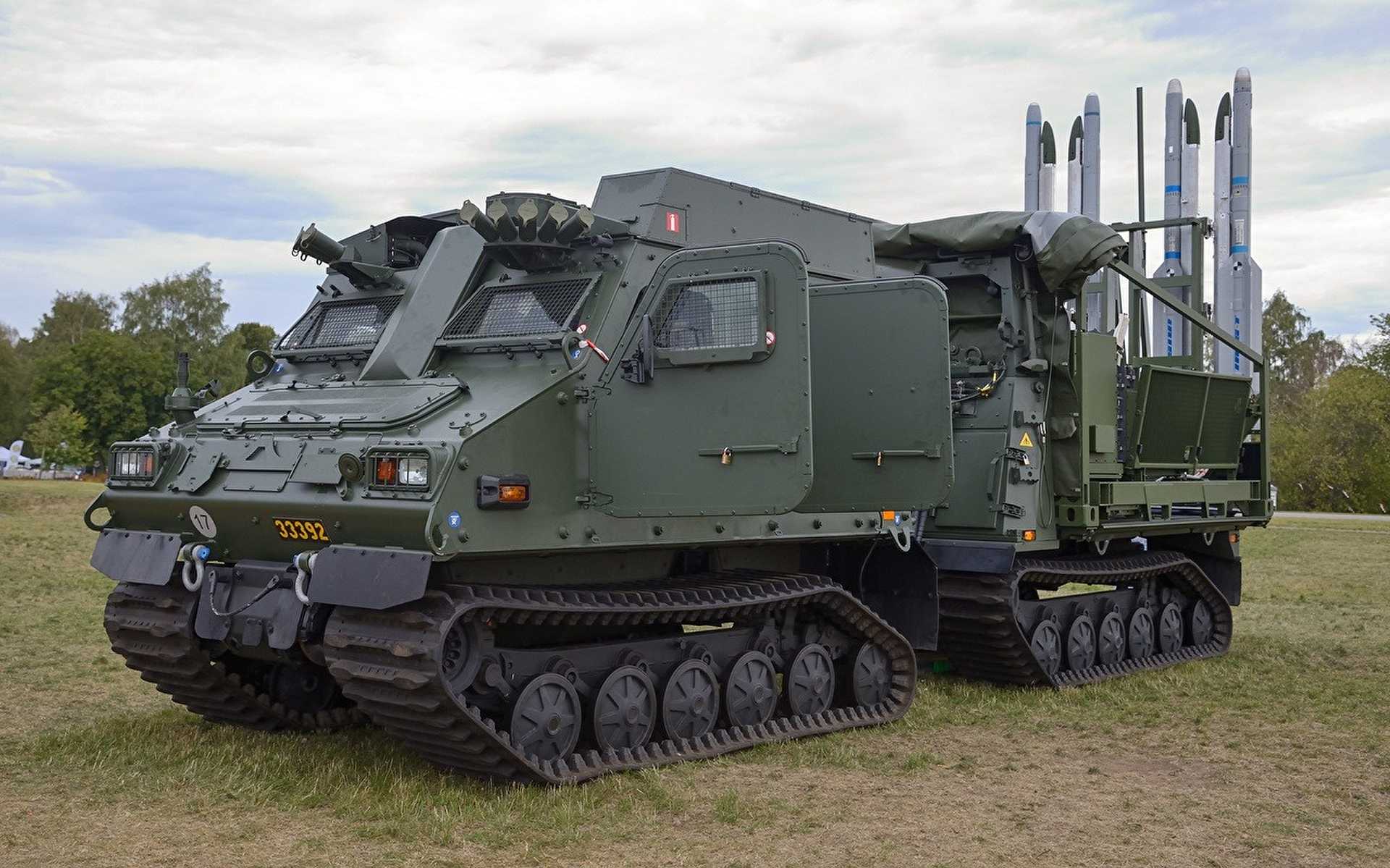

Additionally, the launcher can be mounted on the BvS10 all-terrain tracked amphibious vehicle, enhancing deployment flexibility in difficult environments such as snow, swamp, and mountainous terrain, as well as amphibious operations.
Missile Features
The IRIS-T missile is a highly agile, infrared-guided interceptor with an advanced imaging infrared seeker that provides precise target tracking even under heavy electronic jamming or flare countermeasures. Measuring roughly 2.9 meters long with a 127 mm diameter and weighing around 87 kg, it carries a high-explosive fragmentation warhead optimized for aerial targets.
With an effective range of up to 12 km and altitude coverage of approximately 8 km, the missile is capable of engaging fast-moving and highly maneuverable targets such as fighter jets and drones. Its thrust-vector control system ensures exceptional maneuverability, while its fire-and-forget guidance allows operators to engage multiple threats simultaneously without continuous tracking.
Command and Control
The IRIS-T SLS integrates seamlessly into modern networked air defense systems, utilizing sophisticated command and control suites housed in mobile armored command vehicles. It operates alongside advanced 3D radar units like the TRML-4D and Giraffe 4A, which offer precise target detection and engagement support.
Automated fire control enables rapid target acquisition and engagement with minimal operator input. The system supports NATO-compatible data links such as Link 16 and SAMOC, ensuring interoperability with allied forces. A typical IRIS-T SLS battery comprises multiple launchers, radar systems, and a mobile command center, forming a comprehensive short-range defense capability.
Combat Application
Designed for versatility, the IRIS-T SLS plays a critical role in layered air defense strategies, complementing medium-range systems (like IRIS-T SLM) and long-range platforms (such as Patriot and NASAMS). It excels in point defense missions, safeguarding bases, airfields, and logistics hubs from aerial assault.
In mobile operations, it escorts mechanized units, providing effective protection against aerial threats, including swarm attacks. Its high firing rate, quick response time, and fire-and-forget missile guidance enhance its ability to neutralize multiple simultaneous targets efficiently.
The IRIS-T SLS offers modern militaries a reliable, mobile, and highly lethal short-range air defense solution. Its all-weather capability and strong resistance to electronic countermeasures make it a vital asset in contemporary and future air defense architectures.
