The Gateway to the FutureThe Starship system is SpaceX’s fully reusable space transportation solution. It consists of two main components:

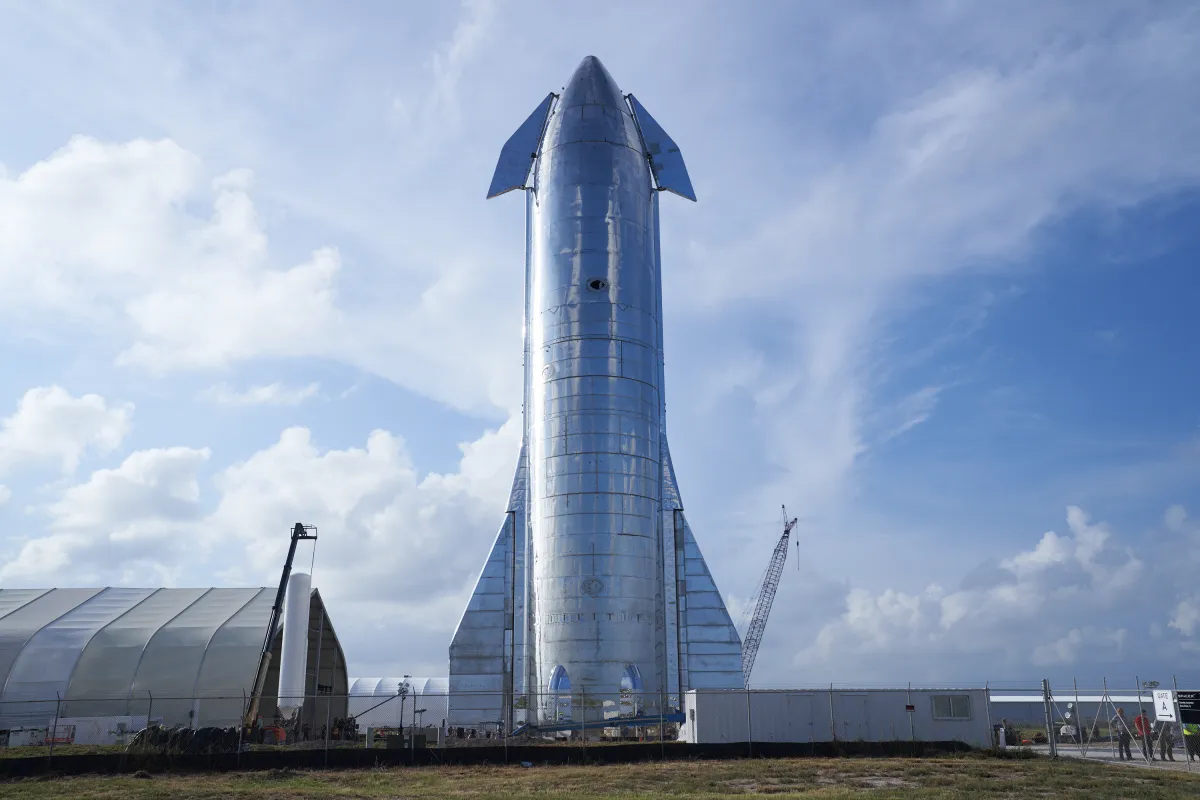

- Starship: The second stage spacecraft capable of carrying humans and cargo, designed for missions to the Moon, Mars, and beyond.
- Super Heavy: The first stage booster rocket that provides the thrust to deliver Starship into orbit.
Technical Specifications
- Total system height: 123 m (Starship 52 m + Super Heavy 71 m)
- Diameter: 9 m
- Orbital payload capacity (fully reusable): 100–150 tons
- Payload capacity (expendable mode): 250 tons
Engines and Thrust
- Raptor engine lineup: 33 engines on Super Heavy; Starship is equipped with 3 sea-level optimized and 3 vacuum-optimized engines
- Each engine operates with full-flow staged combustion using methane and liquid oxygen, producing thrust between 230 and 258 metric tons.
Recovery and Reusability
Starship and Super Heavy re-enter the atmosphere using dynamic control fins in a body-flap (belly-flop) maneuver, then reignite their engines for a precise vertical landing. This enables rapid reuse both on Earth and other celestial bodies. Super Heavy is caught by the launch tower’s robotic arms, allowing it to be quickly refurbished and prepared for the next launch without extensive maintenance.
Mission Profile
- Earth orbit: Transporting large-volume satellites and scientific payloads
- Lunar missions: A Human Landing System (HLS) variant is being developed as part of NASA’s Artemis program to carry astronauts to the Moon
- Mars colonization: Supports crews of up to 100 people with orbital refueling scenarios using unmanned tanker Starships for in-orbit propellant transfer
- Ultra-fast terrestrial travel: Potential to transport passengers between any two points on Earth in under one hour
Strategic Base: Starbase
Located in Boca Chica, Texas, Starbase serves as the design, manufacturing, testing, and launch facility for Starship. The site features an integrated robotic launch tower that facilitates rapid system integration and reusability.
Vision
Starship & Super Heavy represent a revolutionary paradigm shift in space transportation for both crewed and uncrewed missions. With large payload volume, immense thrust, and low operational cost per flight, they are poised to transform interplanetary exploration, infrastructure development, and global travel. The fully reusable architecture offers sustainable solutions aligned with the future space economy.
